    PNEUMATIC TYPE TERMINAL CRIMPING MACHINE
    • Share to:
    • Name:    PNEUMATIC TYPE TERMINAL CRIMPING MACHINE
    • Model:    0
    • Crimping range: 0
    • Voltage range： 0
    • Output：    0
    • Weight:    0
    • Dimensions: 0
    Price: 0
    Wholesale:
    Quantity:

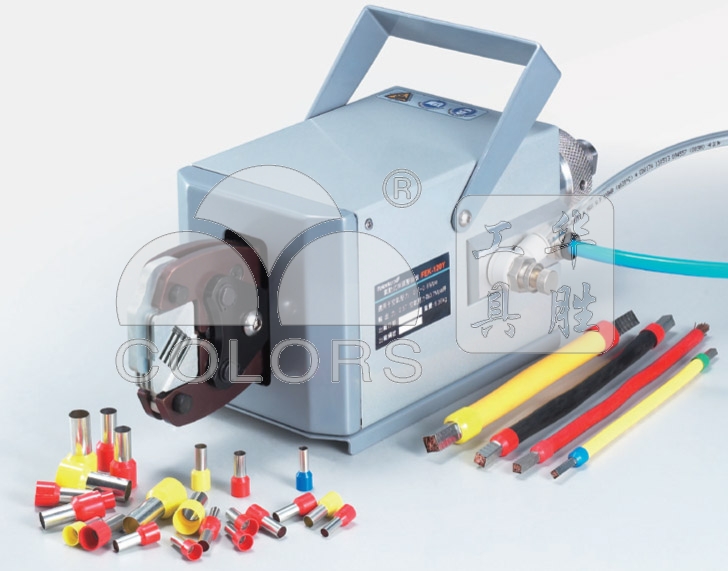

    FEK-120Y


    ■ he crimping dies of front feed or side feed can be selected
    ■ Operated by the foot switch
    ■ Much more reliable, stable and high effeciency
    ■ Compact, light



    型号
    压接能力
    电压范围
    出力
    外形尺寸
    重量
    Item No.
    Capacity(mm²)
    Voltage range(V)
    Output(KN)
    Overall dimension (mm)
    Weight(kg)
    FEK-120Y
    0.08-120
    0.5-0.7
    2.0
    286×125×165
    4.8


    FEK-50L


    ■ The crimping dies are interchangeable for crimping different terminals.
    ■ Operated by foot switch
    ■ Much more reliable, stable and high effeciency
    ■ Compact and light



    型号
    压接能力
    电压范围
    出力
    外形尺寸
    重量
    Item No.
    Capacity(mm²)
    Voltage range(V)
    Output(KN)
    Overall dimension (mm)
    Weight(kg)
    FEK-50L
    6-70
    0.5-0.8
    2.0
    275×128×145
    6


    FEK-06M


    ■ The crimping dies are interchangeable for crimping different terminals.
    ■ Operated by foot switch
    ■ Much more reliable, stable and high effeciency
    ■ Compact and light


    Ferrules, 25, 35, 50mm²

    Twin ferrules, 2×0.5,1.0,1.5,2.0,2.5,4,6,10mm²

    Insulated O type or Y type terminals, 1.0, 2.0, 2.5, 4.0, 6.0mm²

    Non-insulated O type or Y type terminals, 0.5,1.0,1.5,2.0,2.5,4.0,6.0,10.0mm²

    Males or females receptacles, 1.0, 2.0, 2.5, 4.0, 6.0mm²

    Contact pin for rectangular connector, 1.0, 2.0, 4.0mm²

    型号
    压接能力
    电压范围
    出力
    外形尺寸
    重量
    Item No.
    Capacity(mm²)
    Voltage range(V)
    Output(KN)
    Overall dimension (mm)
    Weight(kg)
    FEK-06M
    50
    0.5-0.7
    2.0
    286×125×165
    4.8


    FEK-20M


    ■ The crimping dies are interchangeable for crimping different terminals.
    ■ Operated by foot switch
    ■ Much more reliable, stable and high effeciency
    ■ Compact and light



    型号
    压接能力
    电压范围
    出力
    外形尺寸
    重量
    Item No.
    Capacity(mm²)
    Voltage range(V)
    Output(KN)
    Overall dimension (mm)
    Weight(kg)
    FEK-20M
    0.5-16
    0.5-0.8
    2.5
    275×128×145
    6
